ForSte 14A
Truck-Mounted Platform
The Socage forSte 14A bucket lift for pickup trucks, a versatile articulated platform optimised for both 4×2 and 4×4 configurations.
The forSte 14A has established itself as a leading model in Europe, becoming the top-selling 4×4 aerial platform in the region. We’re now proud to bring it to the Australian market, with full service backup from Altequip.
This model offers a working height of 13.50m and a horizontal reach of 7.10m, along with a robust load capacity of 230 kg (accommodating 2 operators and materials), providing full access to the entire work area without restrictions.
If you have any questions about this dynamic Elevated Work Platform, the Altequip team are here to answer them. Get in touch or book a demo at our Brisbane headquarters today.
Designed for comfort
Customisable
Advanced off-road performance
Unrestricted work area
Mobile, Comfortable Pickup Truck Bucket Lift
The 4×2 or 4×4 pickup’s great comfort and mobility offer exceptional functionality, making it perfect for both outdoor and urban work environments.
With electro-hydraulic controls, the platform delivers smooth and precise movements. All essential components, including the extension cylinder, are safely enclosed within the boom, protecting them from external impacts and debris.
Thanks to Socage‘s lightweight design of the 14A, generous truck bed space, and an option to increase the GVW to 3500kg, this platform can be equipped with premium accessories tailored to each customer’s needs.
The 14A platform’s flexibility and customization options have made it a favorite among maintenance fleets, particularly in sectors like energy and telecommunications.
It is compatible with 4×2 and 4×4 Toyota Hilux, Isuzu D-Max, and Ford Ranger pickup trucks.
Compact, User-Friendly and Tough
With its compact design, no rear overhang, optimized load distribution, and 4×4 configuration, this platform ensures exceptional performance in hard-to-reach areas, where traditional platforms are unable to access.
Standard equipment
Standard accessories
A comprehensive list of the accessories included with the machine.
TECHNICAL FEATURES
TECHNICAL FEATURES - Hoses and cables installed inside the boom
- Proportional electro-hydraulic controls with speed regulation of all movements
- Electronic safe system CAN BUS
- Possibility of simultaneous operation
- 230V and 12V socket on the basket230V and 12V socket on the basket
- Cataphoresis treatment with powder coating
- 4 outrigger plates
- Aerial part centering light on the basket
SAFETY DEVICES
SAFETY DEVICES - Socage Security System
- Unintentional maneuvering protection bar
- Controls protection of the basket
- Circuit braker with differential protection on the 230V line
- Safety bypass for operator rescue
- Moment limiting device with double security
- Inclinometer
- Flanged block valvesFlanged block valves
- Emergency button
- Emergency manual hand pump
- Automatic PTO deactivation
- Smart anti crash cab protection
- Electrical hour counter
- Cab light closed outriggersCab light closed outriggers
- Maintenance light (Service)

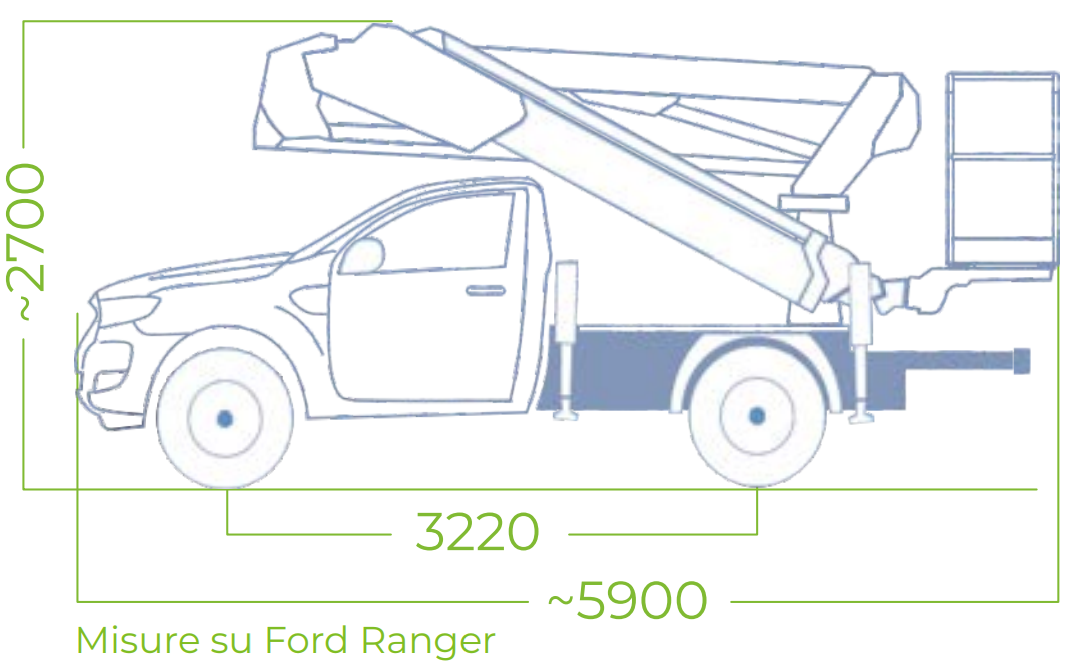

Size
All the relevant machine dimensions.
Technical info
Outriggers
H + H
Working height
13,50 m
Basket height
11,50 m
Max outreach
7,10 m
Basket load capacity
230 kg
Dimensions
120x70x110 cm
Controls
Electric
Turret rotation
700°
GVW
3,19 ton
Basket
Aluminum
Basket Rotation
ForSte 14A Servicing and Maintenance
Located in Brisbane, Altequip provides specialised servicing for the ForSte 14A, ensuring your equipment stays in top condition. We offer routine maintenance, inspections, repairs, and use only genuine ForSte parts to keep your platform running smoothly.
Regular servicing is essential to maintain the performance, safety, and compliance of your equipment with Australian regulations. Whether you’re using a single unit or managing a fleet, Altequip’s professional servicing guarantees your ForSte 14A remains job-ready and reliable.
Contact Altequip today for expert servicing, support, and maintenance!
