Raptor Spider Lifts for Sale
Altequip is the official agent for Socage EWPs in Australia, and are proud to offer their range of Raptor spider lifts for sale. With models offering working heights from 18 metres to 35 metres and maximum lateral outreach from 8.2 metres to 21 metres, they’re suited to multiple industries.
The Raptor range combines a tracked undercarriage with stabilised elevated access. If you have work sites with tricky access and unsteady ground conditions, you can still work at heights with these spider lifts.
Below we compare the Raptor Spider Lifts for sale by Altequip. If you have any questions please get in touch with our team and we’ll gladly answer them.
Explore Our EWPs for Sale
Filter by
How to Choose the Right Spider Lift
Choosing the right Raptor Spider Lift is about more than looking at the working height of the work you regularly undertake. There are more features to think about, such as outreach, basket capacity, site access and ground conditions.
The Raptor spider lift range covers substantially different working envelopes. The 18S, 21S and 24S provide progressively greater height and outreach while sticking to a 230kg basket capacity.
At the upper end of the range, the Raptor 35S provides a significantly larger working envelope, with 35m maximum working height, 21m lateral outreach and a 300kg basket capacity.
When choosing the right machine for your work, all of this needs to be taken into account. The comparisons below are designed to assist you, and the Altequip team is always here to assist you if you have questions.
Raptor Spider Lifts Compared
Use the specifications below as a starting point when comparing Raptor spider lifts.

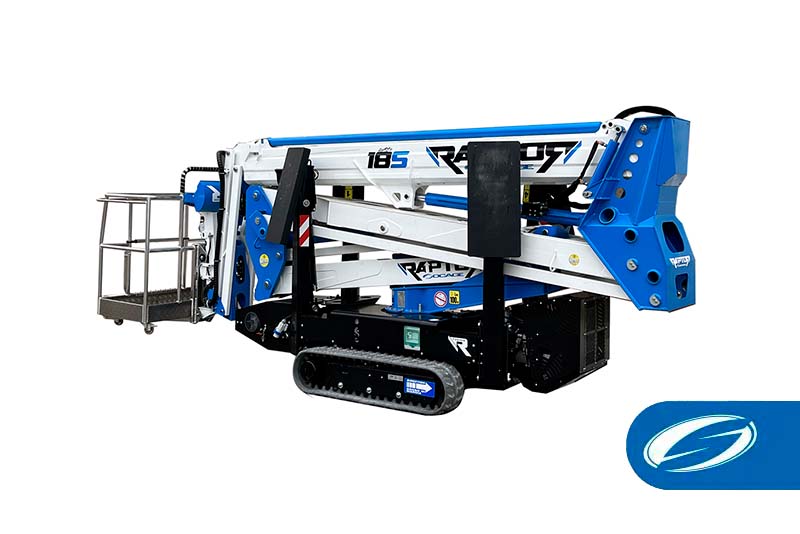

The most compact articulated Raptor in this range provides an 18m working height and 8.2m lateral outreach. I20kg basket capacity, expandable tracked undercarriage and bi-energy diesel/230V electric power system.
Has a working envelope of 20.8m working height and 10.3m lateral outreach, while retaining a 230kg basket capacity and approximately 2.6t GVW. Also features an expandable tracked undercarriage and 380° aerial-section rotation.
Provides 23.8m working height and up to 11m lateral outreach, with a 230kg basket capacity. Includes automatic stabilisation and automatic closing, with the optional Raptor Stab system available to increase ground clearance when negotiating obstacles and slopes.
The largest working envelope of the articulated Raptor models we offer, with 35m maximum working height, 21m lateral outreach and 300kg basket capacity. It also provides a 20m Up & Over articulation point and negative working capability down to 11m below setup level.
What Australian Industries Use Raptor Spider Lifts?
Raptor spider lifts are tracked elevated work platforms that work well on job sites where site access and machine positioning are as important as working height and outreach.
The tracked undercarriage means the machine can travel independently into a work area before being stabilised. The narrow width allows it to squeeze through spaces larger EWPs simply wouldn’t be able to.
Add features like hydraulically expandable tracks, automatic stabilisation, articulated aerial sections and bi-energy operation and you have a range of machines with wide industry appeal. Our customers include professionals working in:
- Arboriculture and tree care
- Building and facilities maintenance
- Construction
- Electrical and utility work
- Property maintenance
- Specialised access applications
Get in touch with our team if you’re thinking of a Raptor Spider Lift and how it will go in your industry. We’ll be happy to talk through their features with you.
Why Buy a Raptor Spider Lift from Altequip?
When you invest in an EWP for your business, you don’t just want confidence in the machine. You need confidence in the company behind it - their technical support, parts availability, delivery models and even their communication skills.
Here are a few reasons why buying your spider lift through Altequip is a
Socage Raptor Expertise
As the official Australian agent for Socage, we have direct access to the manufacturer in Italy for technical support and product information. This gives our team the ability to work directly with the factory when additional technical input is required, rather than relying solely on third-party information.
Australia-Wide EWP Sales
Altequip is based in Brisbane and works with EWP customers across Australia. We offer nationwide delivery and support. Wherever you are across the country, we’ll be able to get a Raptor Spider Lift to you.
Factory-Trained Raptor Technicians
Altequip technicians are factory trained by Socage, giving our service team specialist understanding of the Raptor equipment. You get in-depth product knowledge during the equipment selection process and into servicing and after-sales support.
Original Socage Spare Parts
Altequip has access to original Socage spare parts for the maintenance and repair of Raptor equipment. Spider lift owners get a local service backed by genuine spare parts and technical support linked to the manufacturer themselves.
Raptor Servicing and After-Sales Support
Altequip provides ongoing servicing and technical support for Socage Raptor spider lifts throughout their operating life.
Our technicians are factory trained by Socage, so they know everything they need to know about the servicing and maintenance requirements of the Raptor spider lifts. With our direct line to the Socage factory in Italy, our techs can communicate with the manufacturer to troubleshoot faults and get technical information. Throw in our access to original Socage spare parts, and you have an EWP servicing department that’ll keep your spider lift in incredible condition across its lifespan.
Our Raptor after-sales support includes:
- Scheduled servicing and preventative maintenance
- Factory-trained Socage technicians
- Direct technical support from the Socage factory
- Original Socage spare parts
- 90-day EWP inspections
- Annual inspections
- 10-year major inspections
- Fault diagnosis and EWP repairs
What to Consider When Choosing a Raptor Spider Lift
Working Height
The articulated Raptor range listed by Altequip covers maximum working heights from 18m on the Raptor 18S to 35m on the Raptor 35S. Select the machine according to the working envelope actually required rather than automatically choosing the greatest available height.
Horizontal Outreach
Maximum lateral outreach varies considerably across the range of spider lifts. Outreach is important when the machine cannot be positioned directly beneath the work area or where operators need to reach beyond an obstacle.
Basket Capacity
How many operators do you need in the basket? What tools and materials do they need with them on the job? If you know the answers to those questions you’ll have an understanding of the basket capacity you need.
Site Access and Setup
Before working at heights can begin, your spider lift needs to be able to access and establish a setup position. Access dimensions, terrain, ground conditions and available stabiliser area should all be assessed when selecting a machine. Spoke models use hydraulically expandable tracked undercarriages, while white non-marking tracks provide an option for surfaces where black tracks may leave marks.
Working Around Obstacles
Maximum working height isn’t the only statistic to take into account. The ability of the machine to work over and around obstacles is also important. This is where articulation and horizontal outreach come into play. WE recommend scoping out the entire working envelope of a spider lift, rather than just the working height.
Frequently Asked Questions About Raptor Spider Lifts
What is a Raptor spider lift?
Raptor is Socage’s range of tracked elevated work platforms. The articulated Raptor models supplied by Altequip combine a tracked undercarriage, stabilised setup and articulated aerial structure to provide access at height from a relatively compact ground-based machine.
What working heights are available?
The articulated Raptor models currently listed by Altequip range from 18m to 35m maximum working height. The 18S reaches 18m, the 21S 20.8m, the 24S 23.8m and the 35S 35m.
Which Raptor spider lift has the greatest outreach?
The Raptor 35S provides the greatest maximum lateral outreach in this range at 21m.
The 24S provides 11m, the 21S 10.3m and the 18S 8.2m.
How much can a Raptor spider lift carry?
Can Raptor spider lifts operate indoors?
Suitability depends on the individual machine and site. Models including the Raptor 18S and 21S combine a diesel engine with a 230V electric motor, allowing electric operation where diesel exhaust emissions would be unsuitable. White non-marking tracks are also fitted to these models. Site access, floor loading, ventilation and other operating conditions still need to be assessed before using an EWP indoors.
What's the difference between Raptor S and Raptor ST spider lifts?
The Raptor S machines on this page use articulated aerial configurations. Socage also produces Raptor ST machines using telescopic configurations. Altequip’s telescopic spider lift range includes models such as the 12ST, 15STE and 18ST.
Does Altequip service Raptor spider lifts?
Yes. Altequip provides EWP servicing, inspections, maintenance, repairs and parts support for Socage equipment.
Find the Right Raptor Spider Lift
If you're comparing spider lifts for sale, start with the work the machine needs to perform. Tell Altequip your required working height, lateral outreach, basket load, site access and operating conditions and our team can help you compare the relevant Socage Raptor models.
