ForSte 54TJJ
Truck-Mounted Platform

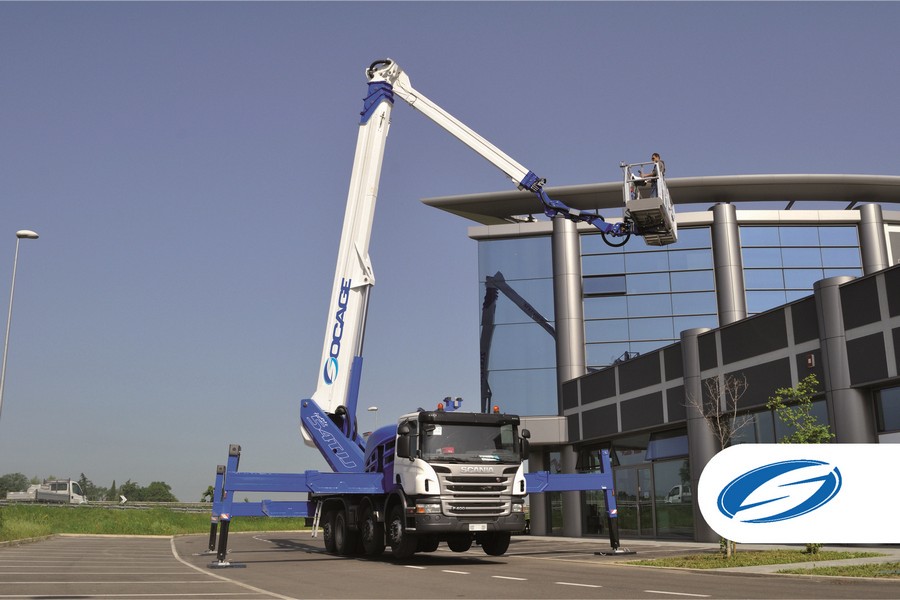

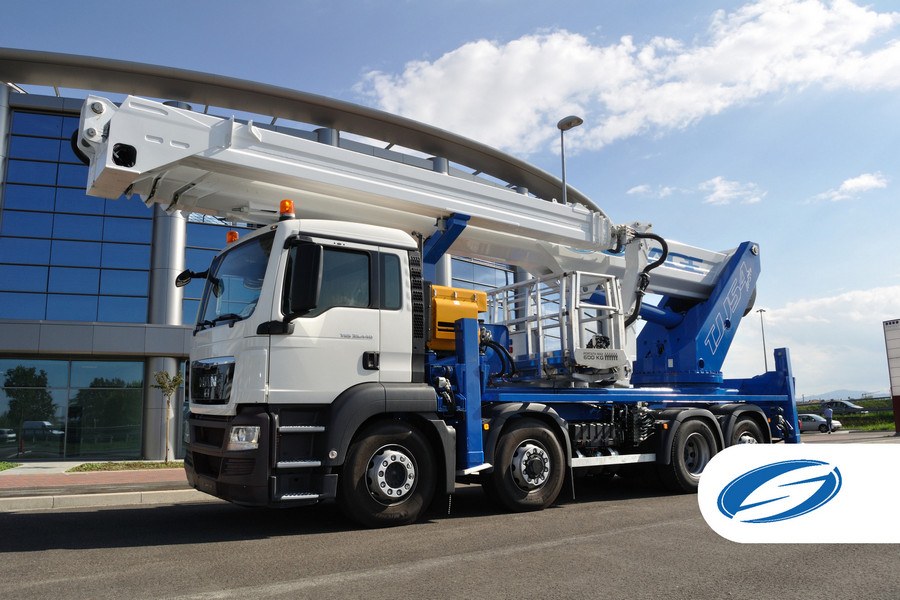

The Socage JIB 54TJJ telescopic aerial platform with a jib is designed for installation on trucks with a minimum p.t.t. of 26 tons. Featuring a secondary boom, this model allows for maneuvers that would be impossible with a single-jib basket.
With a working height of 54m and a horizontal reach of 40m on 32-ton trucks, it boasts a load capacity of 600 kg (6 operators + material).
The 54TJJ comes standard with a 7″ LCD screen on the platform controls, providing the operator with crucial data such as the 2D work area, limiter status, and stabiliser status.
Equipped with a multi-zone stabilisation system, the JIB 54TJJ offers the flexibility to choose the most suitable option based on available space. Additionally, the rear stabilising cross members feature two hydraulic extensions, increasing the stabilisation area for maximum performance.
This truck-mounted EWP platform from Socage is brought to you by Altequip, your trusted Australian supplier. For any questions or to book a demo at our Brisbane headquarters, please get in touch today.
Robust and Mobile
Maximum load capacity 600 kg
Multi-zone stabilization system
Double JIB
Feature-rich truck EWP
Emergency controls are operated remotely via radio, allowing the operator to choose the best position for maximum visibility during the maneuver.
The aerial section rotates 700º, which helps improve truck productivity by reducing the need for repositioning. Additionally, the 54TJJ can be fitted with a hydraulic winch mounted on the boom, with a lifting capacity of 900/1500 kg, transforming the platform into a crane once the aluminum basket is removed.
The aluminum basket has dimensions of 2300 x 900 x h 1100 mm and can extend hydraulically to 3600 mm to expand the available workspace. With a 360º rotation (180° left + 180° right), the basket provides excellent flexibility in positioning for various tasks.
Standard equipment
Standard accessories
A comprehensive list of the accessories included with the machine.
Data Sheet
Data Sheet - Extendable aluminum basket with dimensions 2300/3600 x900x1100 mm
- SOCAGE convertible basket possibility (Eternit)
- Basket rotation 360°Basket rotation 360°
- Rotation turret 700°
- 2 ° Jib 180 ° manual rotation
- Possibility of winch on removable JIB
- Automatic stabilization
- Partially stabilized work areas
- Auto lock
- Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
- Intercom with headphones for basket-ground communication
- Main and auxiliary motor start / stop control from the basket
- Multifunction radio remote control for emergency control of the aerial part from the ground and stabilization
- Electric hour counterElectric hour counter
- PTO automatic cut-off
- N ° 2 fixed roto-lamp on the vehicle cabinN ° 2 fixed roto-lamp on the vehicle cabinN ° 2 fixed roto-lamp on the vehicle cabin
- Socket 230V / 400V
- Heat exchanger on the hydraulic systemHeat exchanger on the hydraulic system
- 2 folding sides, 2 fixed (h 150 mm)
- 4 plates to stand to the ground (700 x 700 x 50 mm)
- Anti-corrosion treatment on unpainted components
- Overhead painting: white RAL 9016Overhead painting: white RAL 9016
- Frame and hydraulic cylinders painting: blue RAL 5015
- LED lights under the basket
- Working lights on the basket
- Working lights on the aerial partWorking lights on the aerial part
- Led rotating beacon on the truck cab
Safety data
Safety data - Emergency and stop button
- Cross check of open stabilizers
- Anemometer
- Load limiter in the basket
- Moment limiter with double safety and control of correct operation
- Multi axial device for visual control of frame stabilization
- Emergency descent with electric pump (in the absence of the auxiliary motor)
- Rotation brake of the turret with automatic insertion
- Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return linesHydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
- Multifunction radio control for emergency control
- Automatism for rotation lock with extension of the stabilizers on one side only
- Chassis flatness sensor
- Flanged block valves

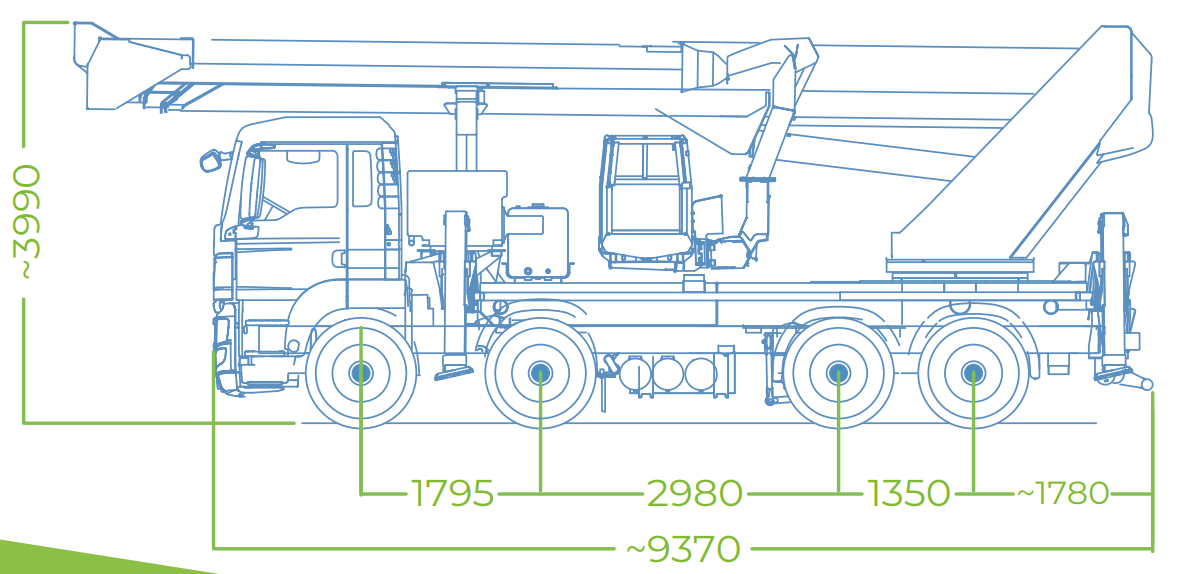

Size
All the relevant machine dimensions.
Technical info
Extensible Outriggers
HE+HE
Working height
54,30 m
Basket height
52,30 m
Max outreach
40,00 m
Basket load capacity
600 kg
Basket size
230/360x90x110 cm
Controls
Electric
Basket Rotation
700º
GVW
26/32 tn
WINCH
900/1500 Kg
Basket Rotation
360º
Basket
Aluminium.
ForSte JIB 54TJJ Servicing and Maintenance
Based in Brisbane, Altequip provides comprehensive servicing for the ForSte 54TJJ, offering maintenance, inspections, and repairs to ensure your platform operates at peak performance. Our experienced team uses genuine ForSte parts to perform high-quality repairs and preventative maintenance, guaranteeing the reliability of your equipment.
Regular servicing is crucial for reducing downtime, improving equipment longevity, and maintaining compliance with Australian safety regulations. Whether you operate a single unit or a fleet of platforms, Altequip provides the support you need to keep your ForSte 54TJJ working efficiently.
