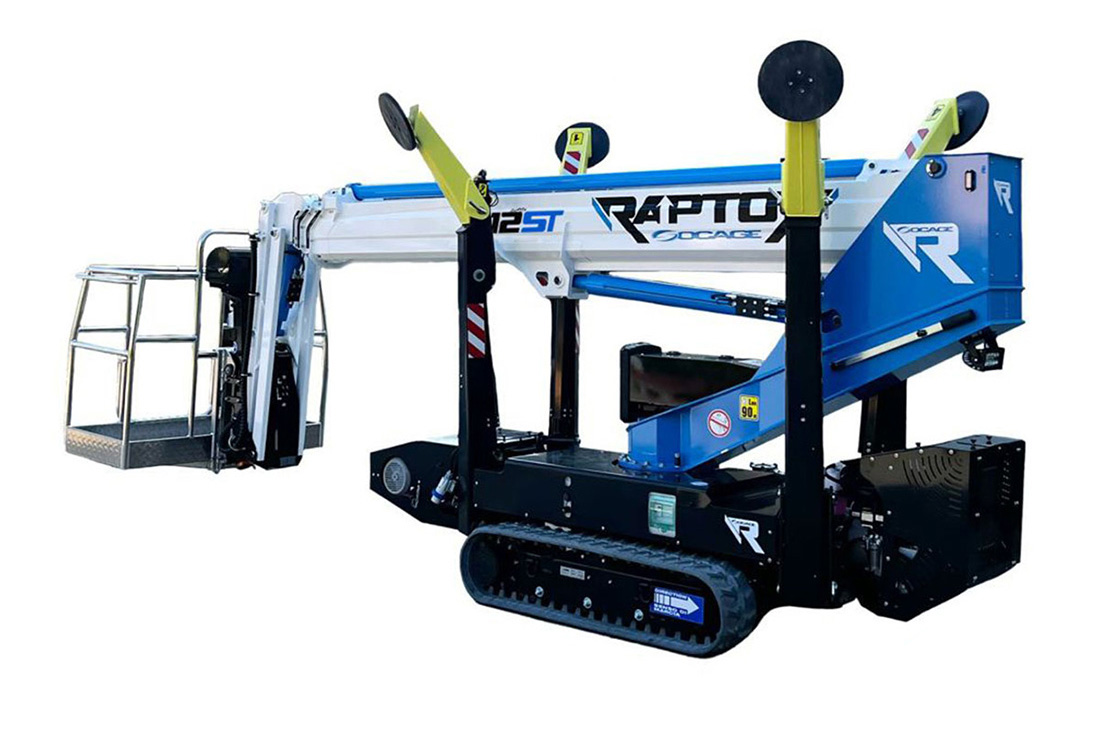

Spider Lift Raptor 12ST
Telescopic Spiders
Altequip proudly presents to Australia the Raptor 12ST from Socage. This telescopic spider lift takes a different approach to access. It’s built for the environments that stop larger machines: tight residential gardens, narrow entry points, sensitive ground surfaces, and indoor sites. At just 2.0 tonnes GVW, the 12ST is trailer-transportable without specialist gear. It reaches a working height of 12.2 metres and a lateral outreach of 8.3 metres, with a 230 kg basket that handles two operators and their tools. If you need height access where it seems impossible, this could be the machine.
Compact but powerful
Agile everywhere
Safe and stable
Guaranteed efficiency
Raptor 12ST. Available in Australia.
Compact machine. No compromises on performance.
The Raptor 12ST is the smallest model in Socage’s telescopic spider lift range, but don’t let the size fool you. This is a high-performing tracked platform that punches well above its weight class.
It’s built for operators who need something agile, fast to deploy, and easy to get on site. Compact dimensions, straightforward transport, and a machine that’s ready to work as soon as it’s off the trailer.
With a working height of 12.2 metres and a lateral outreach of 8.3 metres, the 12ST handles job sites where access is a genuine challenge: small yards, residential gardens, urban streetscapes, and areas where a larger machine simply won’t fit. The 230 kg basket capacity is enough for two operators and their equipment.
The lightweight structure tracks well over sensitive and uneven ground without causing damage. Stabilisation is quick and the controls are intuitive, so you spend less time setting up and more time getting the job done.
If you’re doing maintenance work, residential building interventions, gardening jobs, or urban installations, the 12ST gives you the access and capability you need in a package that’s genuinely easy to handle.
Standard equipment
Standard accessories
A comprehensive list of the accessories included with the machine.
TECHNICAL FEATURES
TECHNICAL FEATURES - Automatic closing
- Automatic stabilization
- Quick release of the basket
- Lifting Hook Support 230kg
- SSW: LED safety lights
- LED travel light
- Booms realized in profiles advanced high tensile steel
- Jib lifting during travel
- Cataphoresis treatment
- Hydraulically extendable tracks
- White non-marking tracks
- Lifting hook on stabilisers
- Extra-large outrigger plates
- Pre-installation for Raptor Stab. Optional
- Socage Connect
- Integrated charger + extra battery for radio control
- Multifunction hydraulic distributor
- Manual hand pump
- 230V electric socket in the basket
- Multifunction radio control
- Auxiliary electric pump 230V-50Hz
- Bi-energy (Diesel engine + Electric motor)
- Trailer transport + Raptor Trailer optional
Size
All the relevant machine dimensions.
Technical info
Outriggers
Z+Z
Working height
12,20 m
Basket height
10,20 m
Max outreach
8,30 m
Basket load capacity
230 kg
Basket size
140x70x110 cm
Controls
Electro-hydraulic
Basket Rotation
190º+190º
GVW
2,0 T
BASKET ROTATION
60º + 60º
DIMENSIONS
3150 x 3000 mm
HOOK
230 kg
Spider Lift Raptor 12ST Servicing and Maintenance
The Raptor 12ST is a working machine, and like any EWP, it needs regular attention to stay safe, compliant, and performing at its best. Altequip’s servicing department handles maintenance and repairs for Socage elevated work platforms, with direct backing from the Socage factory in Italy.
Our Brisbane-based EWP servicing team works with single-unit owners and fleet operators alike. Scheduled maintenance, compliance inspections, repairs, and genuine Socage parts is all covered in-house. And if you run other brands alongside your 12ST, we service all makes and types of EWPs too.
Keeping your Raptor 12ST serviced through Altequip means less downtime, a longer service life, and confidence that your equipment meets Australian safety regulations.
Get in touch to talk to the team about your servicing needs.
